Name: CPUMMK2 600-050-000-001 620-021-110-113 CPU Board
Brand: Joyoung International Trading Co.,Ltd
SKU: CPUMMK2 600-050-000-001 620-021-110-113
Price: 1000 USD
Availability: InStock

Dom Produkty Inne marki

CPUMMK2 600-050-000-001 620-021-110-113 CPU Board

Szczegóły Produktu:

Miejsce pochodzenia:	Chiny
Nazwa handlowa:	Other Brands
Orzecznictwo:	CO
Numer modelu:	CPUMMK2 600-050-000-001 620-021-110-113
Dokument:	CPUMMK2.pdf

Zapłata:

Minimalne zamówienie:	1EA
Cena:	$1000
Szczegóły pakowania:	Oryginalny
Czas dostawy:	3-5 dni roboczych
Zasady płatności:	T/T
Możliwość Supply:	10 sztuk na dzień

Kontakt

Szczegółowy opis produktu

Nazwa handlowa:	Other Brands	Model produktu:	CPUMMk2 600-050-000-001
Numer części:	620-021-110-113	Uszczelka:	Oryginalny
Gwarancja:	1 rok	Czas realizacji:	W magazynie
Podkreślić:	CPUMMK2 CPU board replacement , 620-021-110-113 CPU board , 600-050-000-001 CPU board

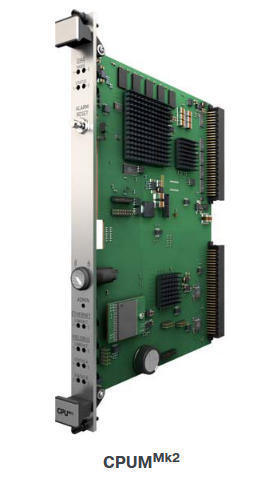

CPUMMK2 600-050-000-001 620-021-110-113 CPU Board

Product Specifications

Brand Name	Others
Model	CPUMMK2 600-050-000-001
Ordering Information	620-021-110-113
Origin	China
Dimension	161612 cm
Weight	1 kg
HS Code	8537101190
Payment	T/T
Sales Price	$1000
Warranty	12 months
Lead Time	3-5 work days

Product Overview

The CPUM Mk2 CPU Board must be paired with the IOCN Mk2, serving as an optional rack controller and communication interface for industrial monitoring systems.

Key Features

Modbus TCP/PROFIBUS DP fieldbus communication
Data collection, processing, and sharing capabilities
Communication redundancy support
Front-panel alarm reset (AR) functionality
Rack security with removable-key lock
Event logging capabilities
Compatible with distributed systems and machinery monitoring software

Installation & Configuration

The CPUM Mk2 and IOCN Mk2 are single-width modules that each occupy one slot in the ABE04x system rack. For standard operation, install the CPUM Mk2 at the rack front with the IOCN Mk2 directly behind it at the rear. Both modules connect to the rack backplane via two connectors.

For rack-level communication redundancy, install two pairs: one as the "master" in slots 0 and the other as the "subordinate" in slots 1. This pair configuration works with all ABE04x racks and later models with an I²C interface.

System Integration

The CPUM Mk2 acquires measurement data by connecting to other processing modules (such as MPC4 Mk2 and future AMCx Mk2) via the VME bus and XMx16 modules via Ethernet. It shares this data with third-party systems including DCS or PLC, and supports basic processing operations including arithmetic and logical functions.

Note: The CPUM Mk2 is incompatible with first-generation cards and functions as a low-bandwidth data gateway for XMx16 modules. As a rack controller, it can configure XMx16 + XIO16T modules without requiring a server.

Compatible Components

IC670ALG630	07AI91
07KT97	140XTS00200
AAM21-S2	ADV551-P00
DO232	CON 041
PR6423/002-030	1746-OV16
CP60 P0961FR	ASSY-0301059
