Name: GE IS200HSLAH2AED High-speed Serial Link Interface Board 24VDC for EX2100e Regulator Dual Control System with Two Jack Inputs and Outputs
Brand: Joyoung International Trading Co.,Ltd
SKU: IS200HSLAH2AED
Price: 2000 USD
Availability: InStock

Dom Produkty Sterownik GE Fanuc

GE IS200HSLAH2AED High-speed Serial Link Interface Board 24VDC for EX2100e Regulator Dual Control System with Two Jack Inputs and Outputs

Szczegóły Produktu:

Miejsce pochodzenia:	USA
Nazwa handlowa:	GE
Orzecznictwo:	CO
Numer modelu:	IS200HSLAH2AED

Zapłata:

Minimalne zamówienie:	1 szt
Cena:	$2000
Szczegóły pakowania:	6.4" x 6.4" x 4.8" (16 cm x 16 cm x 12 cm)
Czas dostawy:	5-8 dni roboczych
Zasady płatności:	T/T
Możliwość Supply:	10pcs

Kontakt

Szczegółowy opis produktu

Nazwa handlowa:	GE	Model:	IS200HSLAH2AED
Stan:	Nowy	Waga brutto/waga przesyłki:	2,2 funta / 35,2 uncji / 1 kg
Rozmiar pakowania:	6.4" x 6.4" x 4.8" (16 cm x 16 cm x 12 cm)	Kraj pochodzenia/kraj pochodzenia:	Stany Zjednoczone (USA)
Czas realizacji:	W magazynie	Port wysyłkowy:	Xiamen
Zapłata:	T/T	Cena sprzedaży:	ZAPYTANIE
Kolor:	Zależy od materiału	Gwarancja:	12 miesięcy
Czas realizacji:	5-8 dni roboczych	Partnerzy kurierscy:	DHL, UPS, TNT, FedEx i EMS
Podkreślić:	24VDC High-speed Serial Link Interface Board , EX2100e regulator dual control system Host Application Board , Two jack inputs and outputs GE IS200HSLAH2AED

IS200HSLAH2AED GE High-speed Serial Link Interface Board 24VDC

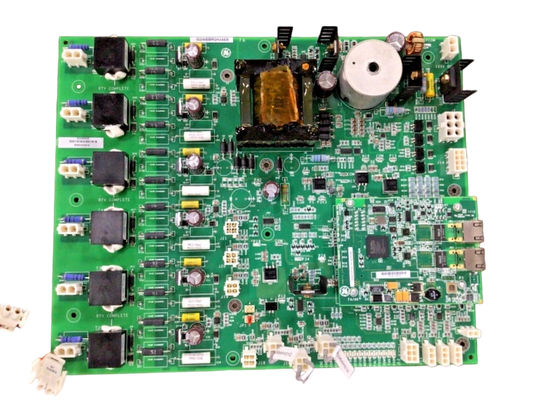

The IS200HSLAH2AED is a High-speed Serial Link Interface Board manufactured by General Electric, designed for Host Application Boards as part of the EX2100e regulator dual control system.

Product Specifications

Brand Name	GE
Model	IS200HSLAH2AED
Catalog	Mark VI
Origin	United States (USA)
Dimension	161612cm
Weight	1kg
HS Code	8537101190
Payment	T/T
Sales Price	$2000
Warranty	12 months
Lead time	3-5 work days

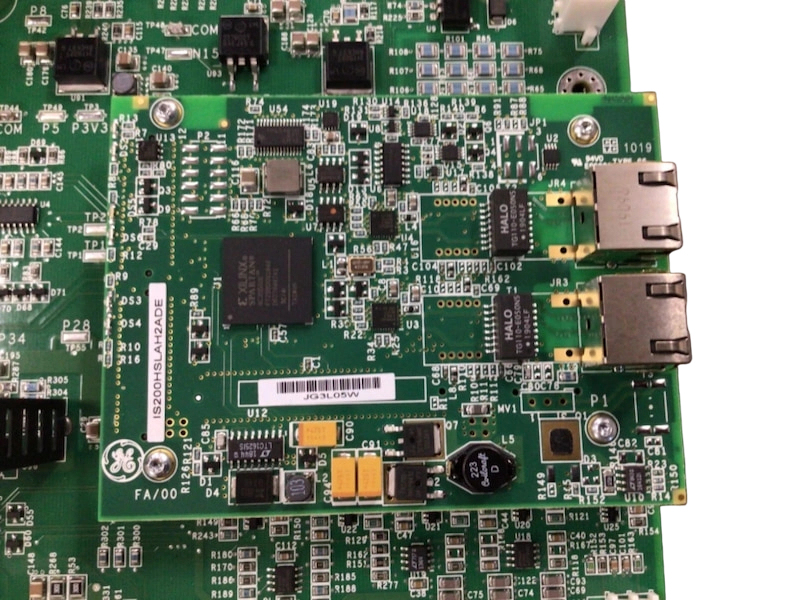

Technical Details

Part of EX2100e regulator dual control system
Serially connected to EX2100e ERAX M1 and M2 to UCSB CPU M1 and M2
Features two jack inputs/outputs on top surface
Includes two Halo TG 110-EO 50N5 transformers
Contains over twenty integrated circuits including an FPGA at U1
Two female connectors on the bottom of the board
FA/00 code marked on PCB
Integrated conduction sensors

Control System Features

The EX2100e control software provides high performance and facilitates understanding, installation, commissioning, tuning, and maintenance of the excitation control system. The exciter software is configured and loaded in controllers using the ToolboxST application, represented as control blocks on the ToolboxST Component Editor screen to depict signal flow.
